TIMER DELAY RELAY 5VDC MODULE

Product description:

• 5V relay delay Turn On / Turn Off module

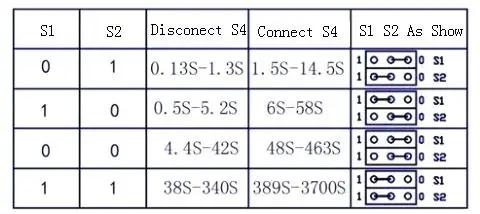

• With 8 time ranges selected shortest 0.1s most up to 1 hour
• Protection against power reversal protection diode, better protection module
• Can be accessed by a large current load (250VAC 10A or 30VDC 10A)
• With delay adjustment potentiometer clockwise adjustment time longer

Electrical parameter:

• Input voltage: 5VDC
• Quiescent dissipation: 5.5mA
• Maximum power consumption: 70mA

Relay load capacity:

• 250VAC 10A (2500W ideal power AC)
• 30VDC 10A  (300W ideal power DC)

Product size:

• size (mm): 57 * 30 * 17.5(L*W*H)

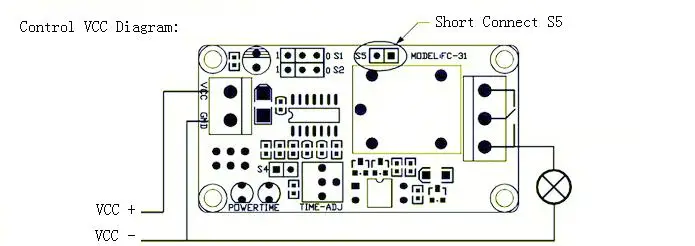

Connection diagram:

• Short connect S5 will allow the DC power source (VCC+) to connect to the common pin of the relay

• Disconnect S5 to isolate the DC power source (VCC+) to AC power source (AC+)
